Optical Parameters:
| Focal Length(EFL) | 50mm | f Number (f#) | 2.0 |
| Wavelength Range | 3.7~4.8 micro | Detector | 640x512-15micro |
| FOV | 10.97°x8.78°(14.02°) | Coating | DLC+AR |
| Average Transmittance | >81% | Working Temperature Range | -40℃ ~ +50℃ (Need not to refocus) |

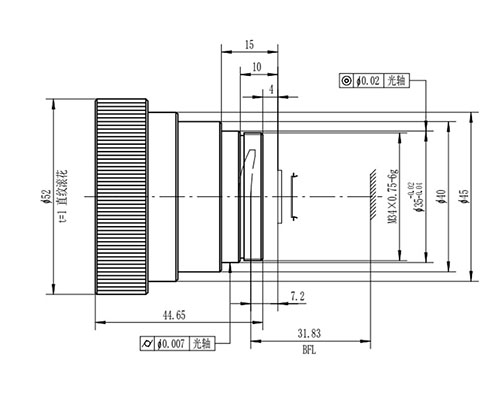

| Maximum Diameter | 44mm | Overall Optical Length | 69.54mm |
| BFL | 31.96mm (7.33mm in air, 24.63mm in detector) | Distortion | <5% |
50mmF2.0 athermaiized lens module is designed for cooled detector ( InSb FPA Focal Plane Arrays ) of 640x512-15μm at MWIR wavelength range 3.7~4.8μm, it is optical passively athermalized, and is optimized optically for good MTF and low distortion at temperature range of -40℃ to +50℃. Please see the following data sheet and curves to get more information about this lens module. The improvements and changes of the design is available for customer’s special request
Curves:
1.MTF@33lp/mm
2.Spot Diagram
3.Field Curve and Distortion
4.Relative Illumination
5.Vignetting
