|Material||Alpha-BBO||Wavelength Range||190~3500 nm|
|Aperture Size||ɸ6mm||Extinction Ratio||<5x10-6|
|Seperation Angle||>15°||Surface Quality||20 / 10 S/D|
|Parallelism||<1 arc Min||Beam Deviation||< 3 arc minutes|
|Wavefront Distortion||λ /4@633nm||Damage Threshold||>200MW/cm2@1064nm, 20ns, 20Hz|
|Coating||Single MgF2||Mount||Black Anodized Aluminium|

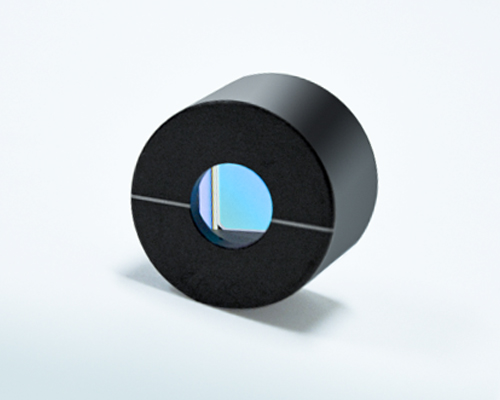

Wollaston polarizer is designed to separate unpolarized light beam into two orthogonally polarized ordinary and extraordinary components which are symmetrically deflected from axis of initial propagation. This kind of performance is attractive for laboratory experiments as both ordinary and extraordinary beams are accessible. Wollaston polarizers are used in spectrometers also can be used as polarization analyzers or beamsplitters in optical setups.
