Optical Parameter:
| Focal Length Range | 30mm to 120mm | F Number(#) | 1.0 |
| Wavelength Range | 8~12 micro | Focusing Range | ∞~25mm/∞~100mm |
| Horizontal FOV | 20.6°/5.2° | Coating | DLC and AR |
| Average Transmission | >70% | Working Temperature | -25℃ to +55℃ |
| MTF at Axis | >0.5@20lp/mm | MTF at Maximum FOV | >0.3@20lp/mm |
Mechanical Parameters:
| Mechanical Connection | M54x0.75 | Focus Mechanism | Motorized |
| Flange Back Distance | 20mm |

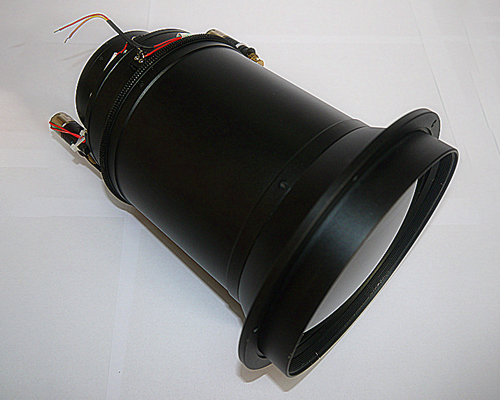

It is a continuous zoom lens module, with a motorized focus mechanism. The focal lengths are variable between 30mm and 120mm, with an f-number of 1.0.
