Specifications:
| Materials | Optical grade LiNbO3 crystals | Orientation | X-cut |
| Diameter | 100(±0.2)mm | Thickness | 0.35(±0.05)mm |
| Surface Finish | DSP | TTV | 3μm |
| BOW | 15μm | Primary Reference Flat | 35.2+/-2mm |
| Secondary Reference Flat | Optional | Polished Surface Roughness Ra | <0.5nm |
| Surface Quality | 20/10 S/D | Edge Rounding | R=0.2mm or Bullnose |

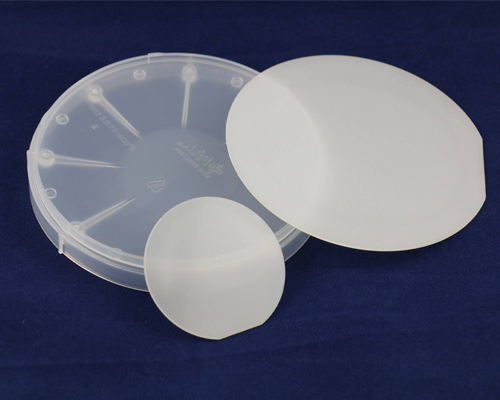

The Optical grade LiNbO3 wafers/crystals/substrates are offered, advanced facilities are equipped for crystals growing, wafer cutting, lapping, polishing and checking. The LiNbO3 wafers are used in:
