BBO Crystals

  • Ultra-thin crystals: 0.01mm with FS substrate, 0.05mm free-standing optimized for femtosecond lasers
  • Versatile applications: SHG,THG,4HG,5HG, OPO,OPA,OPG, SPDC, EO Modulations
  • Maximum aperture: 20x20mm
  • Coating options: P-coating/ multi-layer V-type AR coating/ dual wavelength AR coating
Inquire for custom product
Code Size Thickness θ φ Coating Application Unit Price Delivery Cart
20201-001 6x6mm 0.01mm 23.4° 90° P/P SHG@1030nm Type1 $380 3 weeks
20201-002 6x6mm 0.02mm 23.4° 90° P/P SHG@1030nm Type1 $380 3 weeks
20201-003 6x6mm 0.05mm 23.4° 90° P/P SHG@1030nm Type1 $380 2 weeks
20201-004 6x6mm 0.1mm 23.4° 90° P/P SHG@1030nm Type1 $380 2 weeks
20201-005 6x6mm 0.5mm 23.4° 90° P/P SHG@1030nm Type1 $245 2 weeks
20201-006 6x6mm 1.0mm 23.4° 90° P/P SHG@1030nm Type1 $245 2 weeks
20201-007 6x6mm 1.5mm 23.4° 90° P/P SHG@1030nm Type1 $245 2 weeks
20201-008 6x6mm 2.0mm 23.4° 90° P/P SHG@1030nm Type1 $245 2 weeks
20201-009 6x6mm 0.01mm 29.2° 90° P/P SHG@800nm Type1 $380 3 weeks
20201-010 6x6mm 0.02mm 29.2° 90° P/P SHG@800nm Type1 $380 3 weeks
20201-011 6x6mm 0.05mm 29.2° 90° P/P SHG@800nm Type1 $380 2 weeks
20201-012 6x6mm 0.1mm 29.2° 90° P/P SHG@800nm Type1 $305 2 weeks
20201-013 6x6mm 0.2mm 29.2° 90° P/P SHG@800nm Type1 $245 2 weeks
20201-014 6x6mm 0.5mm 29.2° 90° P/P SHG@800nm Type1 $245 2 weeks
20201-015 6x6mm 1.0mm 29.2° 90° P/P SHG@800nm Type1 $245 2 weeks
20201-016 6x6mm 2.0mm 29.2° 90° P/P SHG@800nm Type1 $245 2 weeks
20201-017 10x10mm 0.02mm 29.2° 90° P/P SHG@800nm Type1 $605 3 weeks
20201-018 10x10mm 0.05mm 29.2° 90° P/P SHG@800nm Type1 $605 2 weeks
20201-019 10x10mm 0.1mm 29.2° 90° P/P SHG@800nm Type1 $530 2 weeks
20201-020 10x10mm 0.2mm 29.2° 90° P/P SHG@800nm Type1 $455 2 weeks
20201-021 10x10mm 0.5mm 29.2° 90° P/P SHG@800nm Type1 $455 2 weeks
20201-022 10x10mm 1.0mm 29.2° 90° P/P SHG@800nm Type1 $455 2 weeks
20201-023 10x10mm 1.5mm 29.2° 90° P/P SHG@800nm Type1 $455 2 weeks
20201-024 10x10mm 2.0mm 29.2° 90° P/P SHG@800nm Type1 $455 2 weeks
20201-025 6x6mm 0.01mm 44.3° 90° P/P THG@800nm Type1 $380 3 weeks
20201-026 6x6mm 0.02mm 44.3° 90° P/P THG@800nm Type1 $380 3 weeks
20201-027 6x6mm 0.05mm 44.3° 90° P/P THG@800nm Type1 $380 2 weeks
20201-028 6x6mm 0.1mm 44.3° 90° P/P THG@800nm Type1 $305 2 weeks
20201-029 6x6mm 0.2mm 44.3° 90° P/P THG@800nm Type1 $245 2 weeks
20201-030 6x6mm 0.5mm 44.3° 90° P/P THG@800nm Type1 $245 2 weeks
20201-031 6x6mm 1.0mm 44.3° 90° P/P THG@800nm Type1 $245 2 weeks
20201-032 6x6mm 2.0mm 44.3° 90° P/P THG@800nm Type1 $245 2 weeks
20201-033 10x10mm 0.02mm 44.3° 90° P/P THG@800nm Type1 $605 3 weeks
20201-034 10x10mm 0.05mm 44.3° 90° P/P THG@800nm Type1 $605 2 weeks
20201-035 10x10mm 0.1mm 44.3° 90° P/P THG@800nm Type1 $530 2 weeks
20201-036 10x10mm 0.2mm 44.3° 90° P/P THG@800nm Type1 $455 2 weeks
20201-037 10x10mm 0.5mm 44.3° 90° P/P THG@800nm Type1 $455 2 weeks
20201-038 10x10mm 1.0mm 44.3° 90° P/P THG@800nm Type1 $455 2 weeks
20201-039 10x10mm 2.0mm 44.3° 90° P/P THG@800nm Type1 $575 2 weeks
20201-040 10x10mm 2.5mm 44.3° 90° P/P THG@800nm Type1 $575 2 weeks
20201-041 10x10mm 5.0mm 44.3° 90° P/P THG@800nm Type1 $760 2 weeks
20201-042 7x7mm 6.0mm 47.6° 90° P/P 4HG@1064nm Type1 $560 2 weeks
20201-043 6x6mm 2.0mm 21.2° 90° P/P Type1 Phase Matching $245 2 weeks

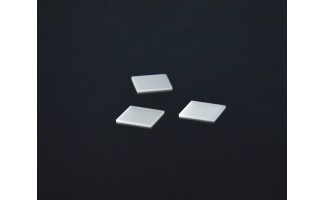

20201-044 5x5mm 0.5mm 23.4° 90° P/P Type1 Phase Matching $245.0 2 weeks
20201-045 8x8mm 2.5mm 23.4° 90° P/P Type1 Phase Matching $395 2 weeks
20201-046 10x10mm 0.1mm 28.5° 90° P/P Type1 Phase Matching $530 2 weeks
20201-047 8x8mm 0.5mm 29° 90° P/P Type1 Phase Matching $350 2 weeks
20201-048 8x8mm 2.5mm 29° 90° P/P Type1 Phase Matching $395 2 weeks
20201-049 6x6mm 1.0mm 29.2° 90° P/P Type1 Phase Matching $245 2 weeks
20201-050 8x8mm 1.0mm 29.2° 90° P/P Type1 Phase Matching $350 2 weeks
20201-051 6x6mm 2.0mm 30° 90° P/P Type1 Phase Matching $245 2 weeks
20201-052 6x6mm 0.2mm 30.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-053 6x6mm 1.0mm 30.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-054 6x6mm 2.0mm 30.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-055 3x3mm 4.0mm 31.3° 90° P/P Type1 Phase Matching $245 2 weeks
20201-056 3x3mm 6.0mm 31.3° 90° P/P Type1 Phase Matching $245 2 weeks
20201-057 6x6mm 2.0mm 31.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-058 6x6mm 2.5mm 31.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-059 8x8mm 0.6mm 32° 90° P/P Type1 Phase Matching $350 2 weeks
20201-060 8x8mm 1.0mm 32° 90° P/P Type1 Phase Matching $350 2 weeks
20201-061 6x6mm 0.6mm 32.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-062 6x6mm 1.0mm 32.5° 90° P/P Type1 Phase Matching $245 2 weeks
20201-063 8x8mm 0.8mm 32.5° 90° P/P Type1 Phase Matching $350 2 weeks
20201-064 5x5mm 2.5mm 32.6° 90° P/P Type1 Phase Matching $245 2 weeks
20201-065 5x5mm 4.0mm 32.6° 90° P/P Type1 Phase Matching $275 2 weeks
20201-066 8x8mm 1.0mm 35° 90° P/P Type1 Phase Matching $350 2 weeks
20201-067 8x8mm 2.0mm 35° 90° P/P Type1 Phase Matching $350 2 weeks
20201-068 20x20mm 0.15mm 35° 90° P/P Type1 Phase Matching $1970 2 weeks
20201-069 20x20mm 0.2mm 35° 90° P/P Type1 Phase Matching $1970 2 weeks
20201-070 10x10mm 3.0mm 40.3° 90° P/P Type1 Phase Matching $575 2 weeks
20201-071 8x8mm 0.3mm 42.8° 90° P/P Type1 Phase Matching $350 2 weeks
20201-072 6x6mm 0.2mm 43° 90° P/P Type1 Phase Matching $245 2 weeks
20201-073 8x8mm 0.1mm 43° 90° P/P Type1 Phase Matching $395.0 2 weeks
20201-074 8x8mm 0.5mm 43° 90° P/P Type1 Phase Matching $350 2 weeks
20201-075 5x5mm 1.0mm 44° 90° P/P Type1 Phase Matching $245 2 weeks
20201-076 8x8mm 0.15mm 44.3° 90° P/P Type1 Phase Matching $350 2 weeks
20201-077 8x8mm 0.5mm 44.3° 90° P/P Type1 Phase Matching $350 2 weeks
20201-078 10x10mm 0.4mm 45.9° 90° P/P Type1 Phase Matching $455 2 weeks
20201-079 3x3mm 4.0mm 47.7° 90° P/P Type1 Phase Matching $245 2 weeks
20201-080 8x8mm 1.0mm 47.7° 90° P/P Type1 Phase Matching $350 2 weeks
20201-081 8x8mm 3.0mm 47.7° 90° P/P Type1 Phase Matching $440 2 weeks
20201-082 10x10mm 1.0mm 47.7° 90° P/P Type1 Phase Matching $455 2 weeks
20201-083 10x10mm 2.5mm 47.7° 90° P/P Type1 Phase Matching $575 2 weeks
20201-084 8x8mm 0.1mm 48° 90° P/P Type1 Phase Matching $395 2 weeks
20201-085 8x8mm 0.2mm 48° 90° P/P Type1 Phase Matching $350 2 weeks

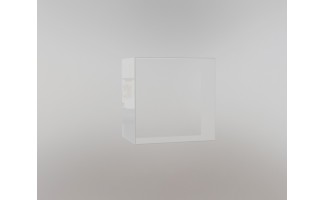

20201-086 4x4mm 2.8mm 51.2° 90° P/P Type1 Phase Matching $245 2 weeks
20201-087 5x5mm 2.5mm 28° 30° P/P Type2 Phase Matching $245 2 weeks
20201-088 8x8mm 2.5mm 28° 30° P/P Type2 Phase Matching $395 2 weeks
20201-089 5x5mm 2.0mm 28.7° 30° P/P Type2 Phase Matching $245 2 weeks
20201-090 8x8mm 0.6mm 30° 30° P/P Type2 Phase Matching $350 2 weeks
20201-091 10x10mm 1.0mm 32° 30° P/P Type2 Phase Matching $575 2 weeks
20201-092 10x10mm 5.0mm 32° 30° P/P Type2 Phase Matching $760 2 weeks

Beta-Barium borate (or β-BaB2O4, β-BBO) crystal is one of the most eminent nonlinear optical crystals. BBO crystal manifests outstanding high nonlinear optical coefficients (the crystal has an effective frequency doubling coefficient 3-6 times larger than the current general ADP and KDP crystals in the near-infrared, visible, and ultraviolet bands. The high nonlinear coefficient of BBO crystals translates into superior frequency conversion efficiencies,  resulting in the generation of high-power pulses with femtosecond durations and megawatt peak powers. A broad transmission range of 189-3500 nm (To see the transmission curve, click on the Resource tab) enables efficient conversion of frequencies across a broad wavelength range. The crystal also boasts an exception damage threshold (15Gw/cm2, twice higher than that of KDP), which allows it to withstand the intense optical fields associated with femtosecond pulses without suffering optical damage.

BBO crystals exhibit superior properties to KDP and ADP crystals in second harmonic generation (SHG) and third harmonic generation (THG) of ultrashort-pulse lasers. In the realm of femtosecond lasers, BBO crystals find a diverse range of utilities including the investigation of ultrafast processes such as chemical reactions, molecular dynamics, and carrier dynamics in semiconductors; medical imaging applications like two-photon microscopy; micromachining and material processing.

Hangzhou Shalom EO offers off-the-shelf and customized BBO crystals. The ultra-thin 0.01mm thickness with fused silica substrates and 0.05mm thickness free-standing BBO crystals optimized for femto-line lasers are available. All the crystals undergo rigorous inspection before despatch to ensure no visible scattering path or center is present within the crystals under the observation of a 50mW green laser. Astounding precision standard (better than 10/5 S/D surface quality) is leveraged to facilitate ultrashort pulse durations. We provide BBO crystals for the usages of :


Applications of BBO Crystals in the field of NLOs:

1. BBO for Second, Third, Fourth, and Fifth Harmonic Generation of Nd: YAG Lasers:

Exceptional conversion efficiencies could be achieved using BBO crystals, which are greater than 70% (SHG), 60% for THG, 50% for 4thHG. BBO crystal is the best option for 213nm 5HG.

BBO crystals excel in handling intracavity SHG of Nd:YAG lasers with high power densities to generate 532nm output. And 263nm output with a decent power level could be attained using a Brewster-angle-cut BBO crystal when pumping the Nd:YAG Laser with an SHG output of a mode-locked Nd:YLF laser.

Because of a small acceptance angle and large angular walk-off, good laser beam quality (small divergence, good mode condition, etc.) is the crucial factor for BBO to function better, tight focusing of laser beams is not suggested.

2. BBO for Harmonic Generations of Other Tunable Lasers:

  • Ultra-fast Lasers:

For SHG and THG of ultra-fast Lasers, BBO also exhibits a great advantage over KDP and ADP crystals.

  • Dye Lasers

BBO crystal is an effective media for SHG of XeCl-laser pumped Dye lasers for producing output in the ultra-violet spectrum (205-310nm).

  • SHG/THG of Alexandrite Lasers and SHG/THG/FHG of Ti:Sapphire Lasers

SHG/THG of Alexandrite Lasers UV output in the region 360nm-390 nm and output in the region 244nm - 259 nm. SHG/THG/FHG of Ti:Sapphire Lasers could also be realized efficiently.

  • Intracavity SHG of Argon Doped Lasers and SHG of Copper-Vapor Lasers

Intracavity SHG of Argon Doped Lasers for UV and Deep-UV output, and SHG of Copper-Vapor Lasers for UV output.

3. BBO for Optical Parametric Oscillation (OPO)/Optical Parametric Amplification (OPA):

Utilizing BBO crystals for optical parametric oscillation(OPO) and parametric optical amplification (OPA), one could easily obtain tunable output in a broad wavelength range (from the UV to IR). Common applications include:

  • OPO of 532nm pumped lasers for output ranging from 680 nm to 2400 nm

our BBO Crystals could support OPO output of 532nm pumped laser with decent conversion efficiencies.

  • OPO and OPA of 355nm Nd:YAG pumped lasers

Using Shalom EO’s BBO, OPO of 355nm Nd:YAG pumped lasers could produce a wide tunable approximate wavelength range from UV to the MWIR spectrum, with promising conversion efficiencies.

OPA of BBO crystals generates narrow-band, high power, and tunable (400 nm to 2000 nm) pulses for a pico-second Nd-YAG pumped laser. The approach is way better than using Dye Lasers in terms of efficiencies, tunable range, and maintenance.


The Tuning Angles of Type 1 and Type 2 OPO and OPA at 532nm, 355nm, and 266nm are collected and illustrated in Fig. 3 and Fig. 4, respectively.

bbo type 1 opo                                    bbo type 2 opo

 Fig.3 Type 1 BBO OPO Tuning Curves (@532/355/266nm)                                         Fig.4 Type 2 BBO OPO Tuning Curves (@532/355/266nm)


4. BBO Crystals for EO applications:

BBO Crystals could be utilized for electro-optical modulations with their high laser-induced damage threshold (LIDT) and wide transmission range from 190nm to 3500nm. BBO Crystals are excellent candidates for high-repetition-rate Q-switching. We provide BBO Crystals for EO applications that are high-precision laser-grade polished and coated Cr-Au electrodes.

Specifications:

Dimension Tolerance(W±0.1mm)x(H±0.1mm)Clear Aperturecentral 90% or the diameter
Scattering of Crystals

No visible scattering path or center

when inspected by a 50mW green Laser

Flatnessless than λ/8 @ 633nm
Transmitting Wavefront Distortionless than λ/8 @ 633nmChamfer≤0.2mmx45°
Chip≤0.1mmSurface Qualitybetter than 10/5 S/D (MIL-PRF-13830B)
Parallelism≤20 arc secondsPerpendicularity≤5 arc minutes
Angle Tolerance≤0.25°Quality Warranty Periodone year under proper use

Physical and Structural Properties:

Crystal StructureTrigonal, space group R3cLattics Parametersa=b=12.532Å, c=12.717Å, Z=6
Melting PointAbout 1095℃Mohs Hardness4
Density3.85g/cm3Thermal Conductivity1.2W/m/K(┴c): 1.6W/m/K(//c)
Thermal Expansion Coefficientsa11=4x10-6/K; a33=36x10-6/K

Optical and Nontinear Optical Properties:

Transparency Range190-3500nmSHG Phase Matchable Range409.6-3500nm(Type I) 525-3500nm(Type II)
Therm-optic Coefficients(/°C)dno/dT=-16.6X10-6 dne/dT=-9.3X10-6Absorption Coefficients<0.1%/cm at 1064nm <1%/cm at 532nm
Angle Acceptance

0.8mrad-cm (θ, Type I,1064 SHG)

1.27mrad-cm (θ, Type II,1064 SHG)

Temperature Acceptance55℃-cm
Spectral Acceptance1.1nm-cmWalk-off Angle2.7° (Type I 1064 SHG) 3.2° (Type II 1064 SHG)
NLO Coefficients

deff(I)=d31sinθ+(d11cosΦ-d22sin3Φ)cosθ

deff(II)=(d11sin3Φ+d22cos3Φ)cos2θ

Non-vanished NLO Susceptibilitiesd11=5.8xd36(KDP) d31=0.05xd11 d22<0.05xd11
Sellmeier Equations(λ in μm )

no2=2.7359+0.01878 / (λ2-0.01822) -0.01354

λ2 ne2=2.3753+0.01224 / (λ2-0.01667) -0.01516 λ2

Electro-optic Coefficientsr22=2.7pm/V
Half-wave Voltage7KV (at 1064nm,3*3*20mm3)Resistivity>1011upohm-cm
Relative Dielectric Constantεs11/εo:6.7 εs33/εo:8.1 Tan δ<0.001

Featured Properties of BBO Crystals:

            • Broad phase matchable range from 409.6nm to 3500nm
            • Wide transmission region from 190nm to 3500nm
            • Large effective second-harmonic-generation (SHG) coefficient about 6 times greater than that of KDP crystal
            • High optical homogeneity with dn < 10-6/cm
            • Wide temperature-bandwidth of about 55℃


                    Typical Applications of BBO Crystals:

                    • Second, third, fourth, and fifth harmonic generation of Nd doping lasers
                    • Second, third, and fourth harmonic generation of Ti:Sapphire ultra-fast pulsed lasers
                    • Second harmonic generation to generate wavelengths as short as 204.8 nm
                    • Shorter wavelengths (193 nm) can be generated by sum frequency mixing
                    • Frequency doubling, tripling, and mixing of Dye lasers
                    • Frequency-doubling of Argon ion, Cu-vapor, and Ruby lasers
                    • Optical parametric amplification (OPA) and optical parametric oscillation (OPO)
                    • Pockels cells of high power, high repetition rates, and short wavelength
                    • Spontaneous down conversions (SPDC) two entangled photons in quantum entanglement applications


                    Curves:



                                                 Fig.1  Transmission curve of BBO                                                     Fig.2   Tuning curves of type 1 and type 2 BBO

                    BBO 6x6x2.0mm 30.5° for Type1 Phase Matching

                    BBO 6x6x2.0mm 30.5° for Type1 Phase Matching

                    More
                    BBO 6x6x1.0mm 30.5° for Type1 Phase Matching

                    BBO 6x6x1.0mm 30.5° for Type1 Phase Matching

                    More
                    BBO 6x6x0.05mm for SHG@800nm Type 1

                    BBO 6x6x0.05mm for SHG@800nm Type 1

                    More
