YAlO3(YAP) Substrates

  • Excellent optical performance, physical properties and chemical properties
  • Maxium Diameter: 2 inches, typical thickness 0.5/1.0mm
  • Surface Roughness: Ra < 0.5nm
  • Clean package: 1000 grade clean room and 100 grade bags
  • Orientation of YAP substrates:＜100＞, ＜010＞ and ＜001＞
  • Applications:for Hight Temperature Supperconductor (HTS) film growth and II-V nitride;
Inquire for custom product

Hangzhou Shalom EO provides YAlO3(YAP) crystal substrates. With the similar structure to YAG crystals, YAlO3(YAP) is an important crystal substrates material with excellent optical performance and physical and chemical properties. RE(rare earth) and transition-metal ions doped with YAP are widely used for the applications of lasers, scintillators, holographic record and optical data storage, dosimeters for ionizing irradiation, substrates for HTSC Film Growing, etc.

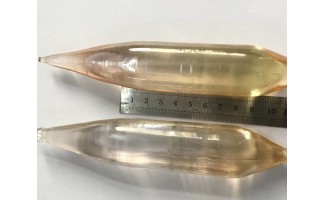

YAlO3 (YAP) Crystals and Substrates

YAlO3 (YAP) Crystals and Substrates
