Rectangular NaI(Tl) Crystals and Detectors

  • High light output and large emission range
  • Aluminium or distilled steel housing and optical glass windows
  • Stocked and custom modules available
  • NaI(Tl) crystals integrated with PMT detectors available
  • Main Applications:scintillation measurements and scintillation spectrometer detectors for ordinary GAMMA ray
Inquire for custom product
Code Material Crystal Size Housing Windows Cart
543-001 NaI(Tl) 54x54x50mm Aluminium Optical Glass
543-002 NaI(Tl) 50x100x400mm Aluminium Optical Glass

Sodium Iodide crystals doped with Thallium (or NaI(Tl) crystals) have a very high scintillation or luminescence efficiency and a good energy resolution, NaI(Tl) scintillators has the largest light-out and an emission range well matched to photomultipliers with bialkali photocathodes at a high efficiency, and combination with its easy availability of variety size and geometries and low cost, NaI(Tl) scintillators has become most widely used scintillators. NaI(Tl) crystals is a kind of highly hygroscopic materials, it must be put in a hermetical sealing housing in using.

The rectangular shaped NaI(Tl) scintillator is an usual type of GAMMA ray detector, Its NaI(Tl) crystal is rectangular shaped and encapsulated in aluminum or steel cases with an optical windows for Photomultiplier Tube (PMT) coupling. The Photomultiplier Tube (PMT) could be integrated to NaI(Tl) crystals if it is required. Rectangular shaped NaI(Tl) scintillators are widely used for in scintillation measurement or scintillation spectrometer detector for ordinary GAMMA ray.  Hangzhou Shalom EO offers the stocked standard rectangular NaI(Tl) scintilaltion crystals and detectors with fast delivery, and we also offers the customized NaI(Tl) crystals upon cusomer's request.

Common Specifications:

Density(g/cm3) 3.67 Melting Point (K) 924
Cleavage Plane <100> Hardness(Mohs) 2
Hygroscopic yes Refractive Index at Emission Peak 1.85
Emission Peak Wavelength (nm) 415 Decay Time (ns) 250
Light Yield (photons/KeV) 38

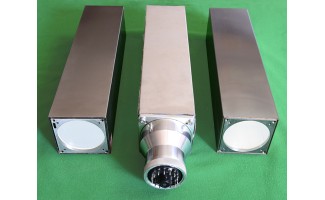

Rectangular Encapsulated NaI(Tl) Scintillators 50x100x400mm

Rectangular Encapsulated NaI(Tl) Scintillators 50x100x400mm

Rectangular Encapsulated NaI(Tl) Scintillators 54x54x50mm

Rectangular Encapsulated NaI(Tl) Scintillators 54x54x50mm
